製品詳細（製品情報・定寸品）
CAC406C パイプ
丸管
材質：CAC406C(BC6C)（青銅６種）
JIS準拠： ✔

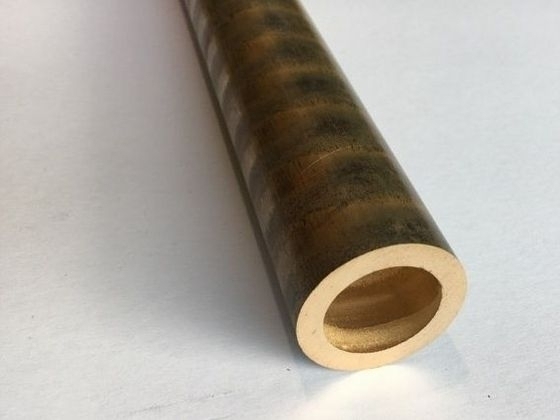

青銅６種の連続鋳造鋳物の丸管・パイプです。BC6C，砲金
最も一般的な青銅丸管、ブロンズpipeです。切削性、耐食性は良好です。
用途例：軸受、バルブ、一般機械用部品等
最も一般的な青銅丸管、ブロンズpipeです。切削性、耐食性は良好です。
用途例：軸受、バルブ、一般機械用部品等
呼称サイスと納入サイズ
| 呼称サイズ 外径(mm) × 内径(mm) |
納入サイズ 外径(mm) × 内径(mm) |
|---|---|
| 30.0 × 15.0 | 31.0 × 13.6 |
| 30.0 × 20.0 | 31.0 × 18.6 |
| 35.0 × 15.0 | 36.0 × 13.6 |
| 35.0 × 20.0 | 36.0 × 18.6 |
| 35.0 × 25.0 | 36.0 × 23.6 |
| 40.0 × 25.0 | 41.0 × 23.6 |
| 40.0 × 30.0 | 41.0 × 28.6 |
| 45.0 × 20.0 | 46.2 × 18.6 |
| 45.0 × 25.0 | 46.2 × 23.6 |
| 45.0 × 30.0 | 46.2 × 28.6 |
| 45.0 × 35.0 | 46.2 × 33.6 |
| 50.0 × 20.0 | 51.2 × 18.6 |
| 50.0 × 25.0 | 51.2 × 23.6 |
| 50.0 × 30.0 | 51.2 × 28.6 |
| 50.0 × 35.0 | 51.2 × 33.6 |
| 55.0 × 25.0 | 56.5 × 23.6 |
| 55.0 × 35.0 | 56.5 × 33.6 |
| 60.0 × 35.0 | 61.5 × 33.6 |
| 60.0 × 40.0 | 61.5 × 38.6 |
| 60.0 × 45.0 | 61.5 × 43.2 |
| 60.0 × 50.0 | 61.5 × 48.2 |
| 65.0 × 30.0 | 66.5 × 28.6 |
| 65.0 × 40.0 | 66.5 × 38.6 |
| 65.0 × 45.0 | 66.5 × 43.2 |
| 65.0 × 50.0 | 66.5 × 48.2 |
| 65.0 × 55.0 | 66.5 × 53.2 |
| 70.0 × 35.0 | 71.5 × 33.6 |
| 70.0 × 40.0 | 71.5 × 38.6 |
| 70.0 × 50.0 | 71.5 × 48.2 |
| 70.0 × 55.0 | 71.5 × 53.2 |
| 75.0 × 40.0 | 76.5 × 38.6 |
| 75.0 × 45.0 | 76.5 × 43.2 |
| 75.0 × 50.0 | 76.5 × 48.2 |
| 75.0 × 55.0 | 76.5 × 53.2 |
| 80.0 × 40.0 | 81.7 × 38.6 |
| 80.0 × 45.0 | 81.7 × 43.2 |
| 80.0 × 50.0 | 81.7 × 48.2 |
| 80.0 × 55.0 | 81.7 × 53.2 |
| 80.0 × 60.0 | 81.7 × 58.2 |
| 85.0 × 40.0 | 86.7 × 38.6 |
| 85.0 × 50.0 | 86.7 × 48.2 |
| 85.0 × 55.0 | 86.7 × 53.2 |
| 90.0 × 40.0 | 91.7 × 38.6 |
| 90.0 × 50.0 | 91.7 × 48.2 |
| 90.0 × 60.0 | 91.7 × 58.2 |
| 90.0 × 70.0 | 91.7 × 68.2 |
| 95.0 × 45.0 | 97.0 × 43.2 |
| 100.0 × 40.0 | 102.0 × 38.6 |
| 100.0 × 50.0 | 102.0 × 48.2 |
| 100.0 × 60.0 | 102.0 × 58.2 |
| 100.0 × 70.0 | 102.0 × 68.2 |
| 105.0 × 65.0 | 107.0 × 63.2 |
| 105.0 × 70.0 | 107.0 × 68.2 |
| 110.0 × 60.0 | 112.0 × 58.2 |
| 110.0 × 85.0 | 112.0 × 82.6 |
| 115.0 × 65.0 | 117.0 × 63.2 |
| 120.0 × 60.0 | 122.0 × 58.2 |
| 120.0 × 90.0 | 122.0 × 87.6 |
| 120.0 × 100.0 | 122.0 × 97.6 |
| 125.0 × 65.0 | 127.5 × 63.2 |
| 130.0 × 80.0 | 132.5 × 78.0 |
| 130.0 × 100.0 | 132.5 × 97.6 |
| 140.0 × 70.0 | 143.0 × 67.5 |
| 140.0 × 90.0 | 143.0 × 87.2 |
| 140.0 × 110.0 | 143.0 × 107.2 |
| 150.0 × 80.0 | 153.0 × 77.5 |
| 150.0 × 100.0 | 153.0 × 97.2 |
| 150.0 × 120.0 | 153.0 × 117.0 |
| 160.0 × 100.0 | 163.0 × 97.2 |
| 160.0 × 130.0 | 163.0 × 127.0 |
| 170.0 × 140.0 | 173.0 × 137.0 |
| 180.0 × 120.0 | 182.8 × 117.4 |
| 180.0 × 140.0 | 183.0 × 137.0 |
| 250.0 × 150.0 | 253.5 × 146.5 |
| 300.0 × 180.0 | 303.5 × 176.5 |
化学成分及び機械的性質
| 化学成分 |
機械的性質 最小値 |
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Cu | Sn | Pb | Zn | Fe | Ni | Al | Mn | P | Bi | Cd | 引張強さ (N/mm²) |
伸び (%) |
ブリネル硬さ (HBW) |
| 83.0 ～87.0 |
4.0 ～6.0 |
4.0 ～6.0 |
4.0～6.0 | 245 | 15 | ー | |||||||
Cu:銅、Sn:スズ、Pb:鉛、Zn:亜鉛、Fe:鉄、Ni:ニッケル、Al:アルミニウム、Mn:マンガン、P:リン、Bi:ビスマス、Cd:カドミウム
